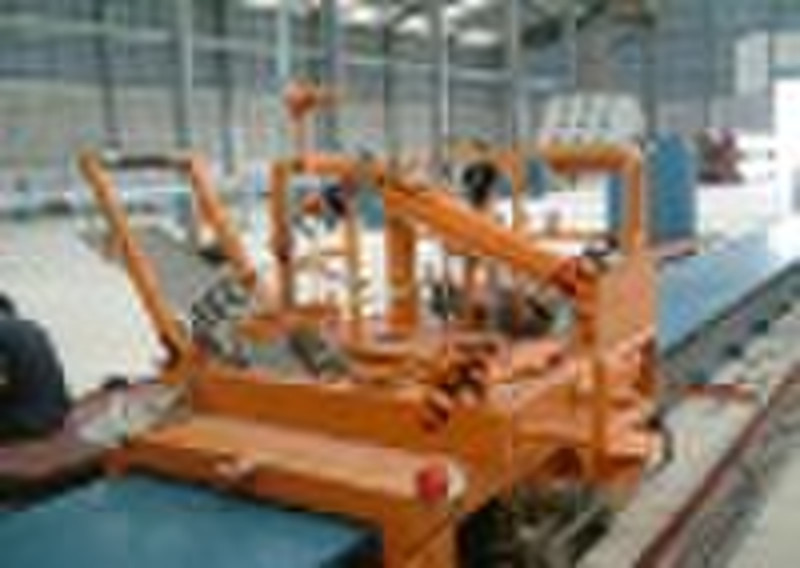

GRP/FRP winding machine/equipment

mainly used to produce and manufacture the small pipe of fiber reinforced composite and the tank winding molded products, such as composite insulator, epoxy sleeve, CNG compressed gas cylinder, gas cylinder of respirator, putamina for water treatment, FRP tank for water treatment and etc. This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient. Equipment NoItem NameFWJS-1600FWJS-2500FWJS-3000Pipe diameter,IDmmDN200-DN1600DN300-DN2500DN500-DN3000Product length,mm≤13000≤13000≤13000Winding angle45 º90 º45 º90 º45 º90 ºMax thickness of adding silicon sand,(in one time) mm152030Rotating speed of main shaft,r/min≤65≤55≤40Transmission methodPinion and rackPinion and rackPinion and rackControl methodmanualsemi automaticautomaticmanualsemi automaticautomaticmanualsemi automaticautomaticCoordinate speed of vehicle ,m/min454545Precision of lining up yarn ,mm±1±1±1Repositioning accuracy ,mm,0.20.20.2Max speed of pulling yarn ,m/min909090Max width of yarn tape ,mm220220220Type of adding silicon sandMortar-adding device of HQ-FRP typeMortar-adding device of HQ-FRP typeMortar-adding device of HQ-FRP typeWinding typeReciprocating cross, hoop directionReciprocating cross, hoop directionReciprocating cross, hoop directionWinding roving capacity,each606060Resin typeUnsaturated polyesterUnsaturated polyesterUnsaturated polyesterCure type of pipe, normal temperature cureInfrared heating cure station can be chosenInfrared heating cure station can be chosenInfrared heating cure station can be chosenDemoulding type of pipeChain traction demoulding of mechanical typeChain traction demoulding of mechanical typeChain traction demoulding of mechanical typeYarn framewinding yarn is a kind of inner pulling yarnTension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical typeRated pressure of hydraulic pressure system,mpa161616Production capacity ,kg/h200025003000Total installed capacity , kw485562Areas covered by production linelength × width × heightm38×19×2.845×19×3.250×19×3.8s
