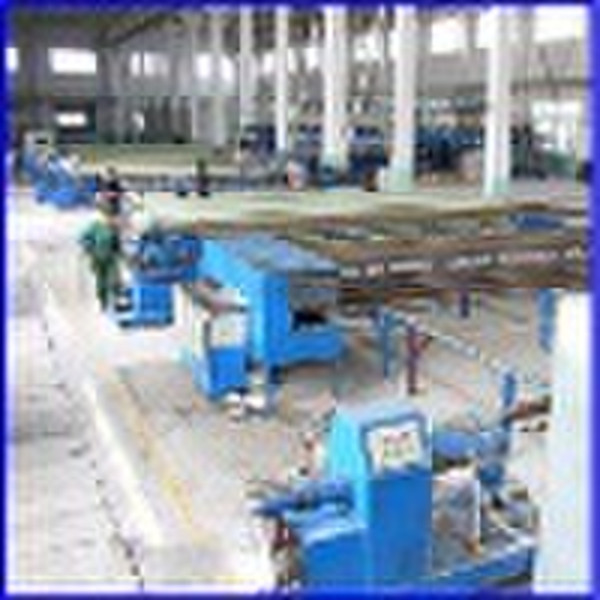

GRP/FRP winding machine/equipment

mainly used to produce and manufacture the small pipe of fiber reinforced composite and the tank winding molded products, such as composite insulator, epoxy sleeve, CNG compressed gas cylinder, gas cylinder of respirator, putamina for water treatment, FRP tank for water treatment and etc. This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient. Equipment TypeItem NameFWDL300-1FWDL300-2FWDL300-4Pipe diameter,IDmmDN50-DN300DN50-DN300DN50-DN300Number of winding shaft,(product number manufactured in one time)124Winding angle30º90º30º90º30º90ºProduct length,mm≤6200≤6200≤6200Rotating speed of main shaft,r/min≤120≤120≤120Transmission methodPinion and rackPinion and rackPinion and rackControl methodmanualsemi automaticautomaticmanualsemi automaticautomaticmanualsemi automaticautomaticSpeed of winding vehicle,m/min404040Precision of lining up yarn,mm±1±1±1Repositioning accuracy,mm0.20.20.2Max speed of pulling yarn,m/min757575Max width of yarn tape,mm120120120Type of adding mortarChoose one type from mortar-adding at the top or mortar-adding at the bottomChoose one type from mortar-adding at the top or mortar-adding at the bottomChoose one type from mortar-adding at the top or mortar-adding at the bottomWinding typeReciprocating cross, hoop directionReciprocating cross, hoop directionReciprocating cross, hoop directionWinding roving capacity,each224444Resin typeUnsaturated polyesterUnsaturated polyesterUnsaturated polyesterCure type of pipe, normal temperature cureInfrared heating cure station can be chosenInfrared heating cure station can be chosenInfrared heating cure station can be chosenDemoulding type of pipeChain traction demoulding of mechanical typeChain traction demoulding of mechanical typeChain traction demoulding of mechanical typeYarn framewinding yarn is a kind of inner pulling yarnTension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical typeProduction capacity ,kg/h200350500Total installed capacity, kw9.5not contain the heating cure station10.5not contain the heating cure station11.5not contain the heating cure stationAreas covered by production linelength × width × heightm9.5×9×1.218×10×1.218×10×1.6s
